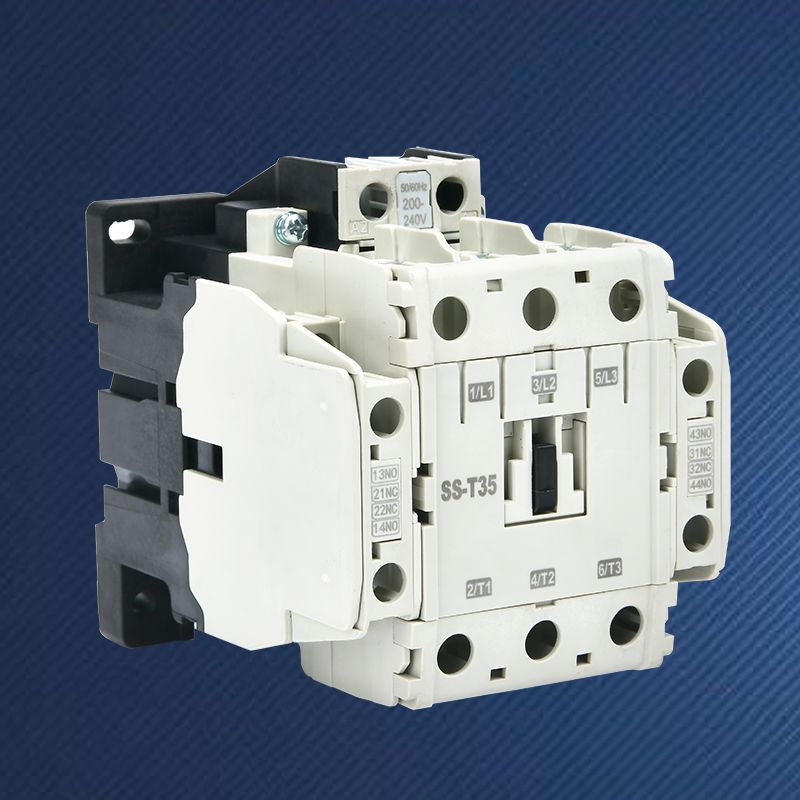

SS-T35 Industrial 3 Phase Ac Magnetic Contactor

SPX ELECTRIC as a distinguished manufacturer and supplier of Industrial Power AC Contactor, thermal relays, and magnetic starters, SPX has established itself as a leader in China, leveraging extensive expertise accumulated over several years. Our specialization in contactors and relays is underscored by a noteworthy price advantage, ensuring the competitiveness of our products. With a widespread market presence across the Middle East and Southeast Asia, particularly gaining traction in Thailand, our product offerings are customized to meet diverse needs and preferences. We are eager about the opportunity to cultivate a lasting partnership with you, positioning ourselves as your reliable long-term collaborator.

Product Details

Product Description

The SPX durable Industrial Power AC Contactor S-T35 serves as a fundamental and widely used electrical component in relay control systems. Its primary function involves connecting and disconnecting lines, as well as frequently controlling the operation of motors and other equipment. Positioned as an intermediate control component, its notable advantage lies in its ability to frequently establish and break connections. Typically, it utilizes small currents or low voltages to control larger currents or higher voltages in the system.

SPX industrial power AC Contactor Parameter

Framel(A)			S-M10(S-T10)	S-M12(S-T12)	S-M20(S-T20)		S-M21(S-T21)		S-M25(S-T25)
KWHP(AC-3) Reted power(AC-3) EC60947-4		220V	2.5/3.5	3.5/4.5	3.7		4		7.5110
		380V	4/5.5	5.5/7.5	7.5		7.5		15/20
Reted cument(AC-3) GB14048.4		220V	11	13	18		20		30
		380V	9	12	18		20		34
Reted heating cument(A)			20		32				50
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Cantac	Standard	1NO	1NO+1NC	1NO+1NC		2NO+2NC
	Reted cument(A)	220V	1.6
		380V	0.95
Electric life			100						80
Machanical life			1000		500				500

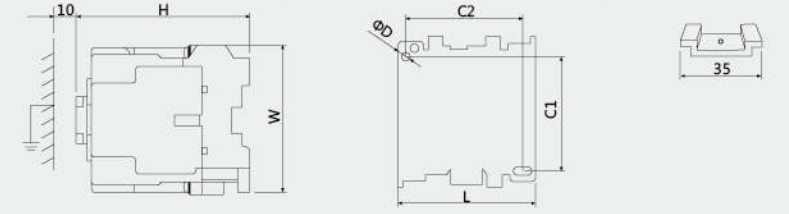

Outline and installation dimension

			Type	L	W	H		C1	C2	φD
			S-T10	36	75	78		60	28	4.2
			S-T12	44	75	78		60	30/35	4.2
			S-T20
			S-T21	63	81	81		58	54	4.5
			S-T25

Frame(A)			S-M35(S-T35)		S-M50(S-T50)		S-M65(S-T65）		S-M80(S-T80)
K/HP(AC-3) Reted power(AC-3) EC60947-4		220V	11/15		15/18.5		18.5/22		22/30
		380V	18.5/22		22/30		30/45		45/55
Reted current(AC-3) GB14048.4		220V	42		54		68		85
		380V	40		50		65		85
Reted heating current(A)			60		80		100		120
Reted insutaled voltage(V)			690
Aicany contact AC-15	Contad	Standard	2NO+2NC
	Reted current (A)	220V	1.6
		380V	0.95
Electric life			85		65
Machanical life			500		300
Outline and installation dimension

			Type	L	W	H	C1	C2	φD
			S-M35	75	89	90	70	65	4.5
			S-M50
			S-M65	88	103	105	75	70	5.5
			S-M80

SPX industrial power AC Contactor Feature And Application

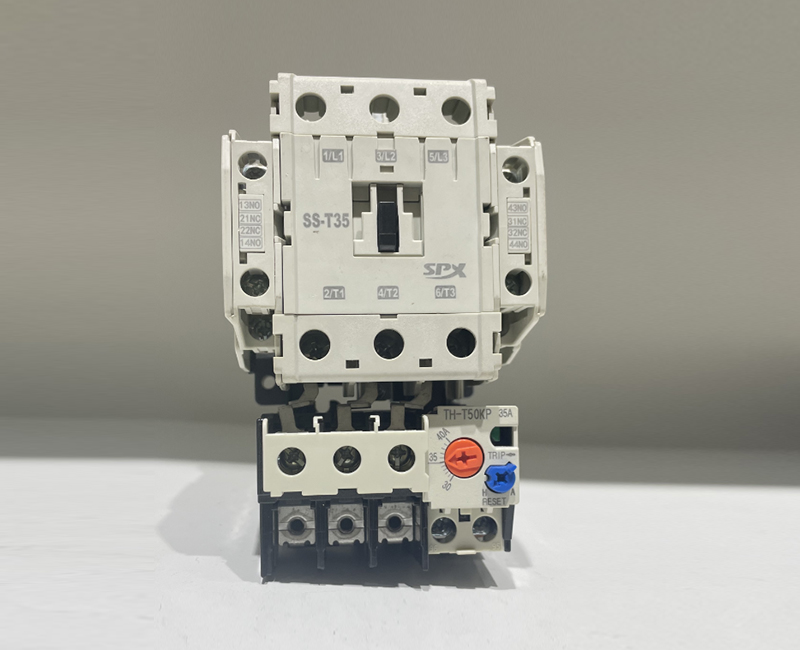

*Used together with thermal relay appliances to protect equipment.

*Environmentally friendly raw material

*With medium and high-end quality to meet the needs of different customers and adapt to different markets.

*Silver contact

*The main application target of AC contactors is motors, and they are also widely used to control other electrical loads, such as DC welding machines, power capacitors, electric water heaters, lighting fixtures, etc.
