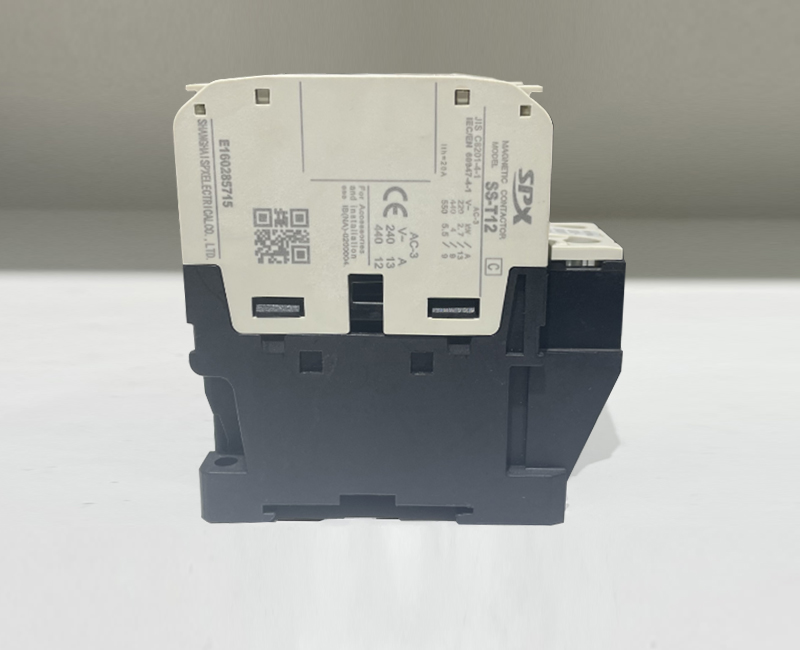

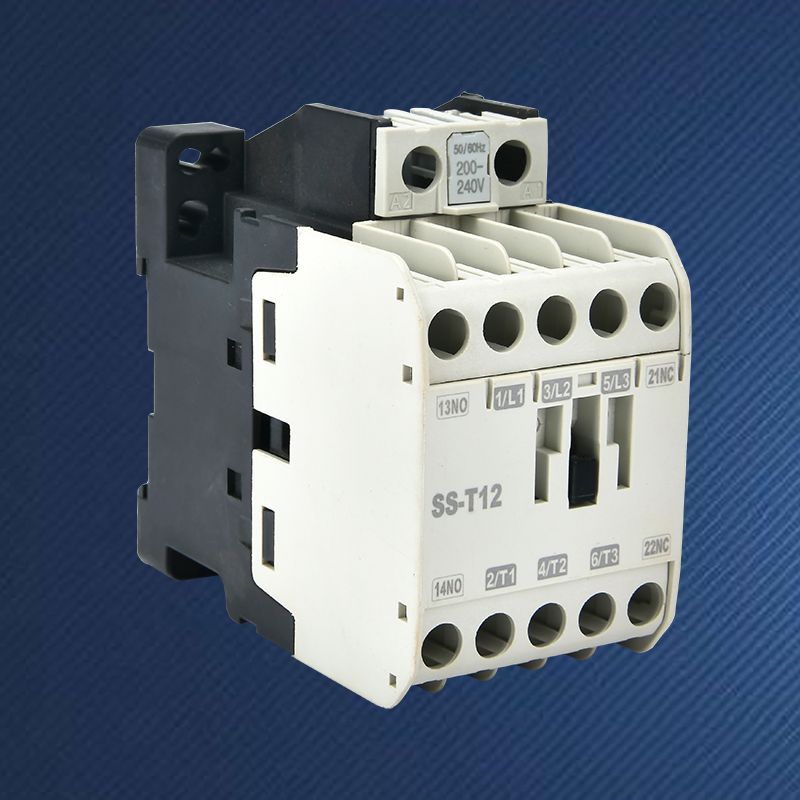

SS-T12 3 Phase AC Operated Magnetic Contactor

Distinguished as a leading manufacturer and supplier, SPX Electric takes pride in its role as a key player in China's electrical industry. With a robust portfolio encompassing AC Operated Contactors, thermal relays, and magnetic starters, SPX boasts a wealth of expertise cultivated over numerous years.

Product Details

Product Description

The AC Operated Contactor stands as a fundamental and ubiquitous electrical component within the relay control system. Its primary function is to establish and break connections, effectively controlling the operation of motors and various equipment. Functioning as an intermediate control component, its notable advantage lies in its ability to frequently connect and disconnect. Typically, it employs small current or voltage to manage larger currents or voltages in the system.

Our commitment to excellence is evident in the significant price advantage we offer, ensuring the competitiveness of our products in the market. Extending our reach across the Middle East and Southeast Asia, with a notable presence in Thailand, we have successfully catered to diverse needs and preferences.

As we look forward to the opportunity of establishing a lasting partnership with you, SPX Electric positions itself as your steadfast, long-term collaborator in China. Our dedication to quality and innovation is poised to contribute to the success and reliability of your electrical systems.

SPX AC operated Contactor Parameter

Framel(A)			S-M10(S-T10)	S-M12(S-T12)	S-M20(S-T20)		S-M21(S-T21)		S-M25(S-T25)
KWHP(AC-3) Reted power(AC-3) EC60947-4		220V	2.5/3.5	3.5/4.5	3.7		4		7.5110
		380V	4/5.5	5.5/7.5	7.5		7.5		15/20
Reted cument(AC-3) GB14048.4		220V	11	13	18		20		30
		380V	9	12	18		20		34
Reted heating cument(A)			20		32				50
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Cantac	Standard	1NO	1NO+1NC	1NO+1NC		2NO+2NC
	Reted cument(A)	220V	1.6
		380V	0.95
Electric life			100						80
Machanical life			1000		500				500
Outline and installation dimension

			Type	L	W	H		C1	C2	φD
			S-T10	36	75	78		60	28	4.2
			S-T12	44	75	78		60	30/35	4.2
			S-T20
			S-T21	63	81	81		58	54	4.5
			S-T25

Frame(A)			S-M35(S-T35)		S-M50(S-T50)		S-M65(S-T65）		S-M80(S-T80)
K/HP(AC-3) Reted power(AC-3) EC60947-4		220V	11/15		15/18.5		18.5/22		22/30
		380V	18.5/22		22/30		30/45		45/55
Reted current(AC-3) GB14048.4		220V	42		54		68		85
		380V	40		50		65		85
Reted heating current(A)			60		80		100		120
Reted insutaled voltage(V)			690
Aicany contact AC-15	Contad	Standard	2NO+2NC
	Reted current (A)	220V	1.6
		380V	0.95
Electric life			85		65
Machanical life			500		300

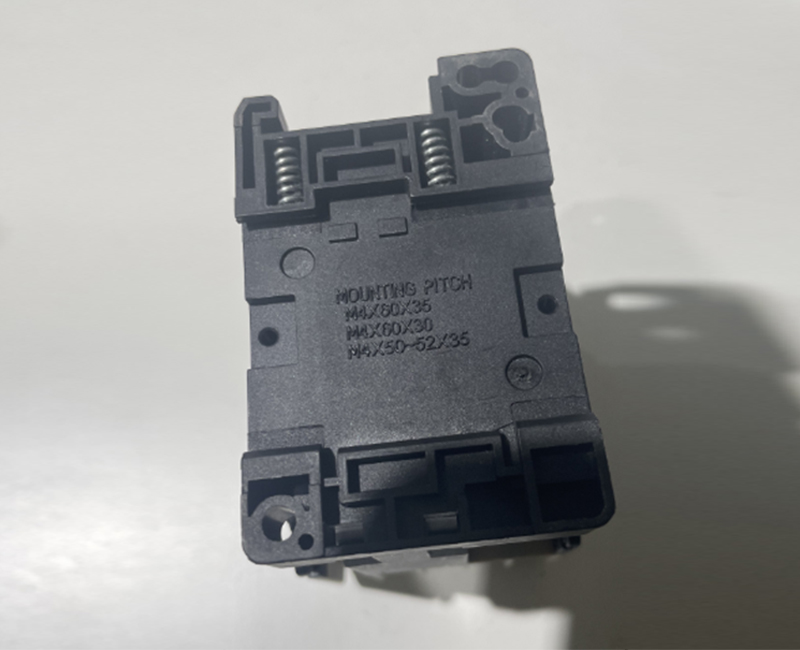

Outline and installation dimension

			Type	L	W	H	C1	C2	φD
			S-M35	75	89	90	70	65	4.5
			S-M50
			S-M65	88	103	105	75	70	5.5

SPX AC operated Contactor Feature And Application

*Utilized in conjunction with thermal relay devices to safeguard equipment.

*Sustainable raw material

*Offering medium to high-end quality to cater to diverse customer needs and adapt to various markets.

*Silver contact

*It employs small current or voltage to control larger currents or voltages in the system, in addition to motors, SPX ac contactors are also used to control other electrical loads, such as electric heaters, welding machines, lighting equipment, etc.
