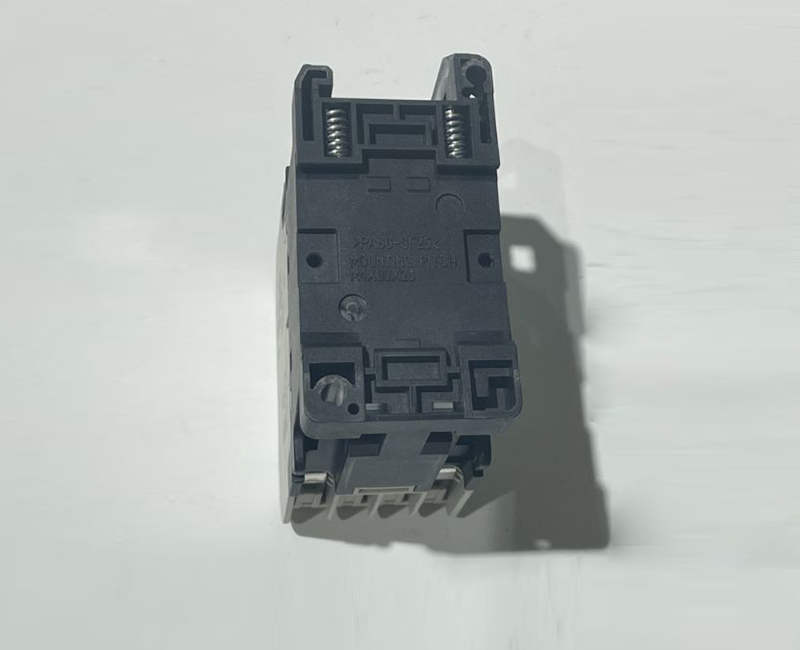

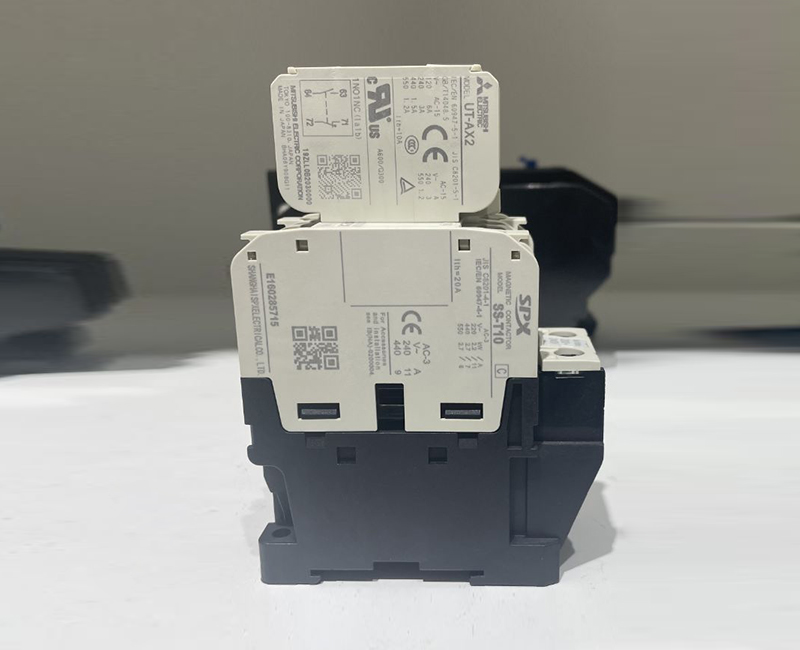

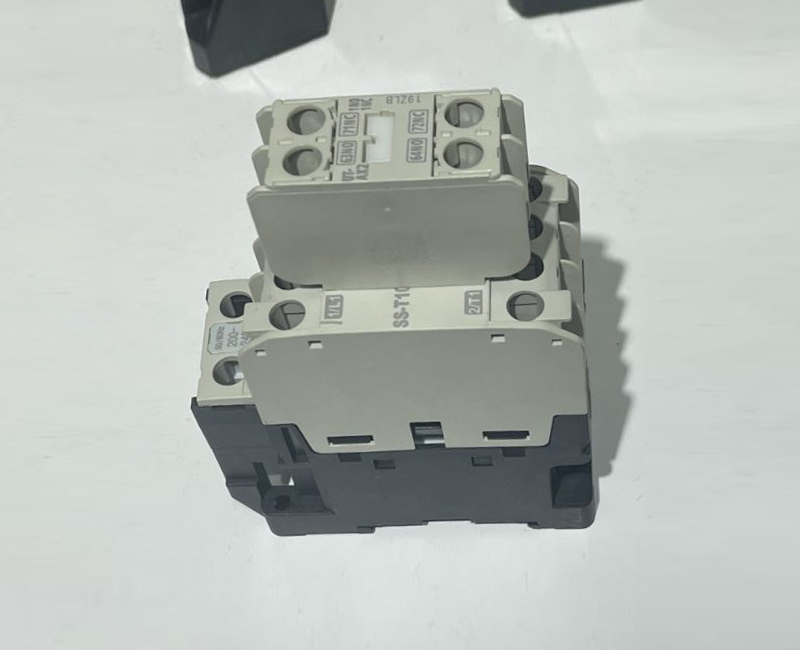

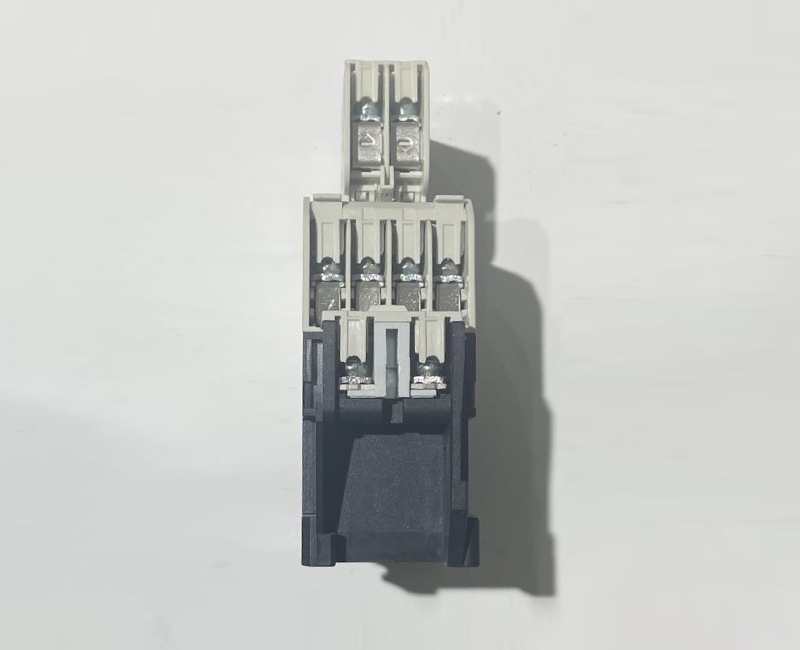

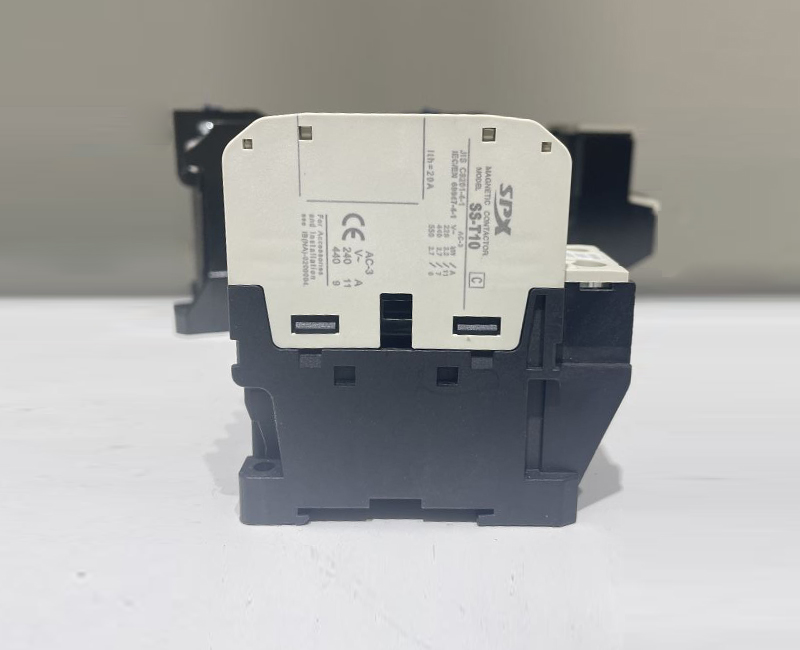

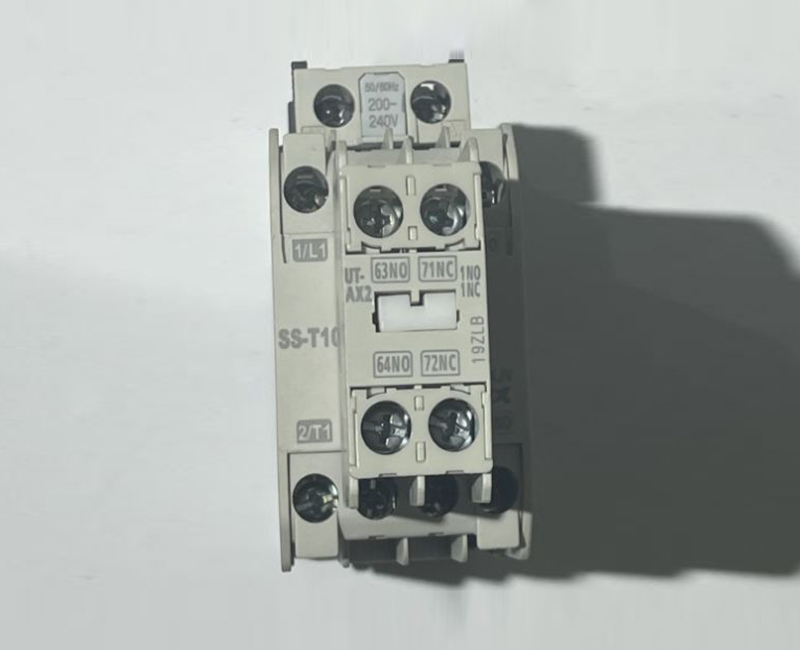

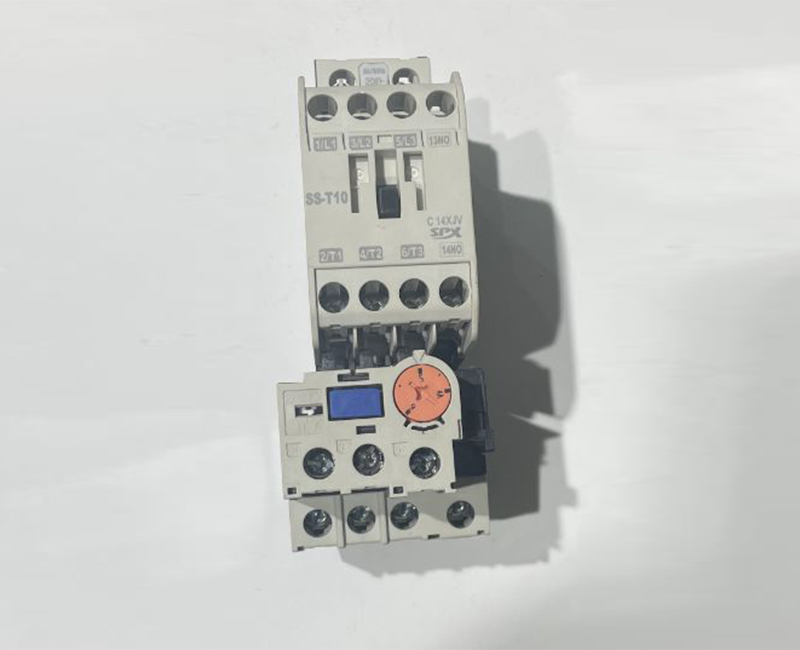

SS-T10 Magnetic Contactor Switch For Ac Unit

SPX Electric stands as a leading AC magnetic Contactor, thermal relays, magnetic starter manufacturer and supplier based in China, boasting extensive expertise in the field for numerous years. Our specialization in contactor&stacter is marked by a notable price advantage, making our products highly competitive. With a wide market reach that spans across the Middle East and Southeast Asia, our offerings cater to diverse needs and preferences. We eagerly anticipate the opportunity to establish a lasting partnership with you, serving as your trusted long-term collaborator in China.

Product Details

Product Description

The AC contactor is the most basic and common electrical component in the relay control system. It is mainly used to connect and disconnect lines, or frequently control the operation of motors and other equipment. It is an intermediate control component. The advantage is that it can frequently connect and disconnect. Lines generally use small current or small voltage to control large current or large voltage.

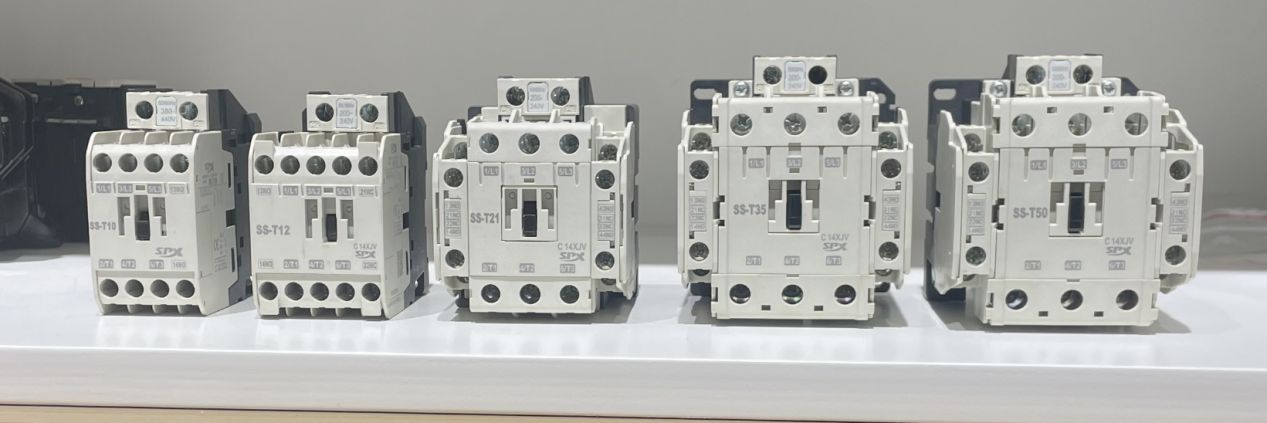

SPX AC magnetic Contactor Parameter

Framel(A)			S-M10(S-T10)	S-M12(S-T12)	S-M20(S-T20)		S-M21(S-T21)		S-M25(S-T25)
KWHP(AC-3) Reted power(AC-3) EC60947-4		220V	2.5/3.5	3.5/4.5	3.7		4		7.5110
		380V	4/5.5	5.5/7.5	7.5		7.5		15/20
Reted cument(AC-3) GB14048.4		220V	11	13	18		20		30
		380V	9	12	18		20		34
Reted heating cument(A)			20		32				50
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Cantac	Standard	1NO	1NO+1NC	1NO+1NC		2NO+2NC
	Reted cument(A)	220V	1.6
		380V	0.95
Electric life			100						80
Machanical life			1000		500				500

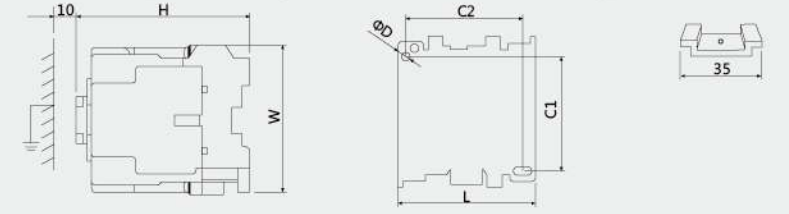

Outline and installation dimension

			Type	L	W	H		C1	C2	φD
			S-T10	36	75	78		60	28	4.2
			S-T12	44	75	78		60	30/35	4.2
			S-T20
			S-T21	63	81	81		58	54	4.5

SPX AC magnetic Contactor Feature And Application

*Used together with thermal relay appliances to protect equipment.

*Environmentally friendly raw material

*With medium and high-end quality to meet the needs of different customers and adapt to different markets.

*Silver contact

*The main application target of AC contactors is motors, and they are also widely used to control other electrical loads, such as DC welding machines, power capacitors, electric water heaters, lighting fixtures, etc.
