SMS-T Magnetic Motor Starter 3 Phase For Air Compressor

Recognized as a leading manufacturer and supplier of cutting-edge electrical components such as AC contactors, thermal relays, and magnetic motor starters, SPX Electric has firmly established itself as a key player in the Chinese market. Drawing upon years of extensive expertise, our unwavering commitment to the production of top-notch contactors and relays is underscored by a significant price advantage, ensuring the competitiveness of our product line. Having expanded our market footprint across the Middle East and Southeast Asia, particularly gaining prominence in Thailand, our diverse range of products is meticulously tailored to cater to a wide spectrum of needs and preferences. At SPX Electric, we are enthusiastic about the prospect of building a enduring partnership with you, aiming to become your trusted long-term collaborator.

Product Details

Product Description

Primarily designed as an initiation apparatus ideal for motors surpassing 0.5 kilowatts in CSS standards, the magnetic motor starter serves a pivotal role in facilitating remote control over the motor's start-up, shutdown, reversal, and other operational functions. This versatile device is adept at seamlessly integrating low voltage and overload protection features, ensuring comprehensive and reliable motor management from a distance.

SPX Magnetic Motor Starter Parameter

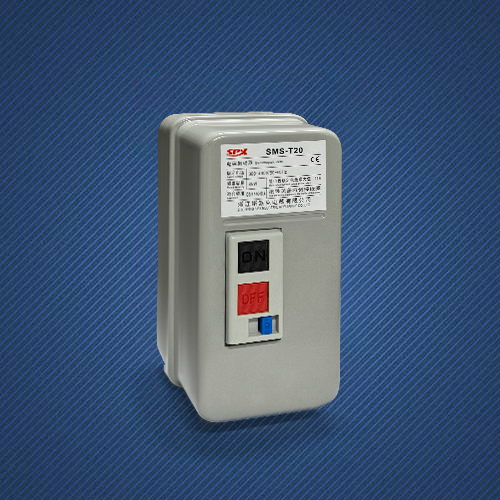

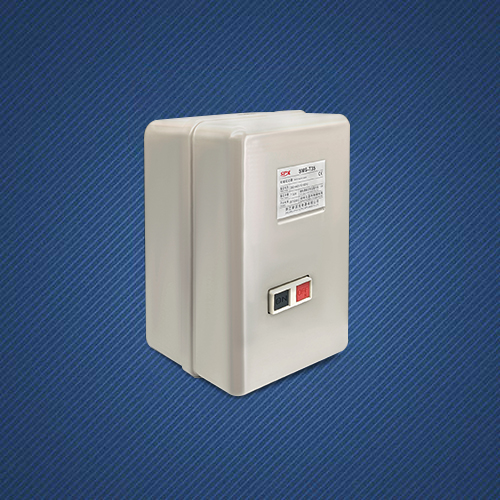

Frame(A)			SMS-T10/12	SMS-T20	SMS-T21	SMS-T25		SMS-T35
KWIHP(AC-3) Reted power(AC-3) EC60947-4		220V	2.2/3	4/5.5	4/5.5	5.5/7.5		7.5/10
		380V	2.7/3.5	7.5/10	7.5/10	7.5/10		15/20
Reted current(AC-3) GB14048.4		220V	11/13	20	20	26		35
		380V	7/9	20	20	25		32
Reted heating current(A)			20	32		50		60
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Contact	Standard	1NO	1NO+1NC	2NO+2NC
	Reted current(A)	220V	1.6
		380V	0.95
Electric rating			IP30
Machanical life			1000		500
Outline and installation dimension
			Type	L	W	H1	H2		C1	C2
			S3-20/21	106	170	110	115		140	76.0
			S3-25/35	136	225	110	130		165	95

SPX Magnetic Motor Starter Feature And Application

*Easy to operate and control

*Simple to maintain

*Relatively economical

*Compact structure

*It does not produce any harmful gases or by-products and is environmentally friendly

*Suitable for controlling multiple motors, each branch can be equipped with circuit breaker protection, and can also provide power for lighting or instruments. Steel pipe or cable routing is acceptable.

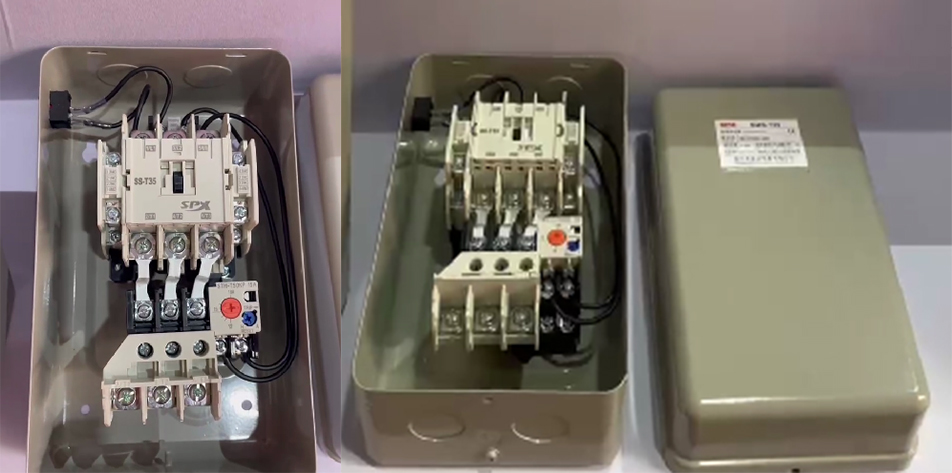

SPX Magnetic Motor Starter S3-T25 Details

*Inner

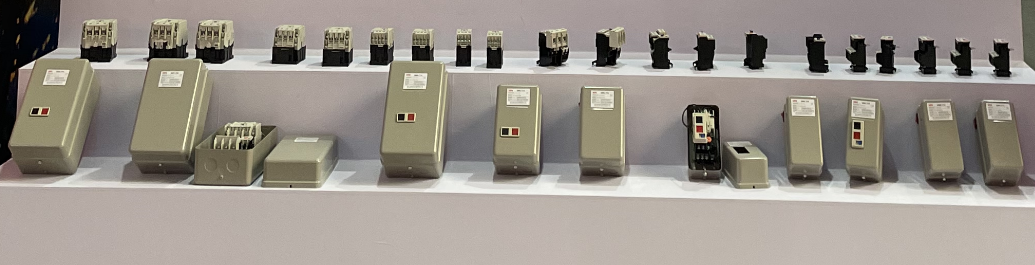

*Series
