SM30-1600 Molded Case Circuit Breakers MCCB
Product Description
The SPX SM30-1600 series molded case circuit breakers MCCB is suitable for the circuit of AC50/60Hz, with rated voltage AC690V and below, rated operating voltage is 415V or lower, and rated current of 500A to 630A. It can protect circuits and electric equipment against overload, short circuit or undervoltage, and can also provide protection of overload, short circuit and under voltage for infrequent start of motor. molded case circuit breaker MCCB have functions of power distribution protection, motor protection, residual current protection and isolation. The molded case circuit breaker MCCB can be installed vertically, installed horizontally and can also enter the line from the bottom.
The SPX SM30-1600 series of Molded Case Circuit Breakers MCCB Parameter
|
Frame(A) |
SM30-1600 |
|
Rated current In(A) |
1000/1250/1600 |
|
Rated voltage(V) |
AC 400V |
|
Rated insulation voltage(V) |
AC 690V |
|
Number ofpoles |
3 |
|
Limited breaking capacity |
S |
|
Short circuit interrupting |
80 |
|
Operate short circuit(kA)AC400V |
40 |

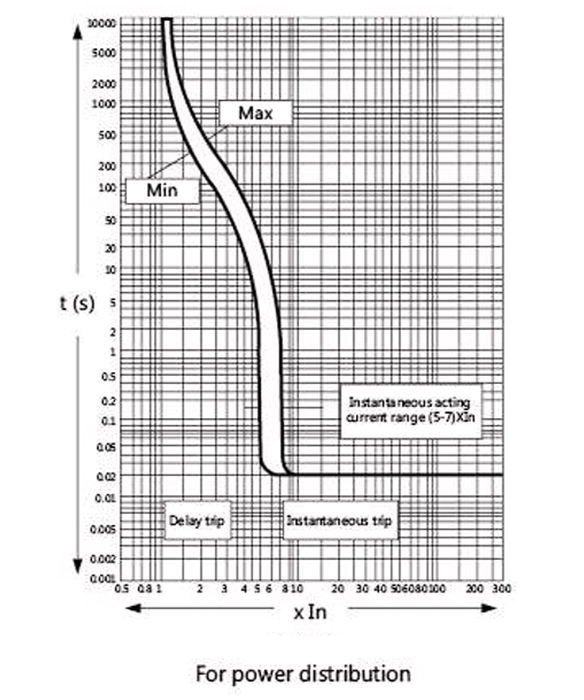

Operating characteristics
The SPX SM30-1600 series of Molded Case Circuit Breakers MCCB Feature And Application
*Environmentally raw material cover and base
*Copper fixed contact with sliver point
*The current is from 1000A,1250A to 1600A. *Machine life is 2500 and electrical life is 500
*S type
*3 poles
* Thermal magnetic
*Protect electrical systems, control machines and equipment, distribute power, and can also be used in other electrical system related applications, such as UPS power supply, generator protection and control.
*with CE certificate

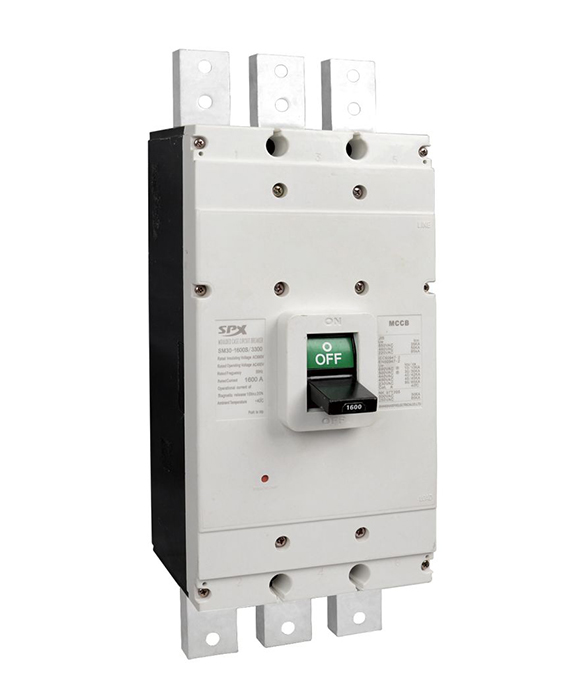

SM30-1600 series of molded case circuit breaker MCCB

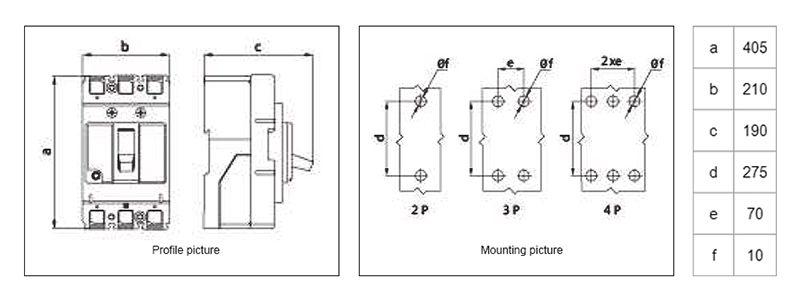

Molded Case Circuit Breakers MCCB Front view
Production process
FAQ
What is your products standardization?
All in accordance with international standards.
How do you pack the equipment?
Use environmentally friendly cartons to pack products and use pallets for stacking.
Can you can design the equipment according to our size?
We can design the equipment according to your size, But when it comes to processing and production costs, it is recommended that customized products be based on a clear minimum order quantity.
How many years have your company made this kind of equipment?
Our AC contactors and thermal relays come with two decades of extensive experience, while our outdoor electric fans boast a 15-year history of production and successful sales.
