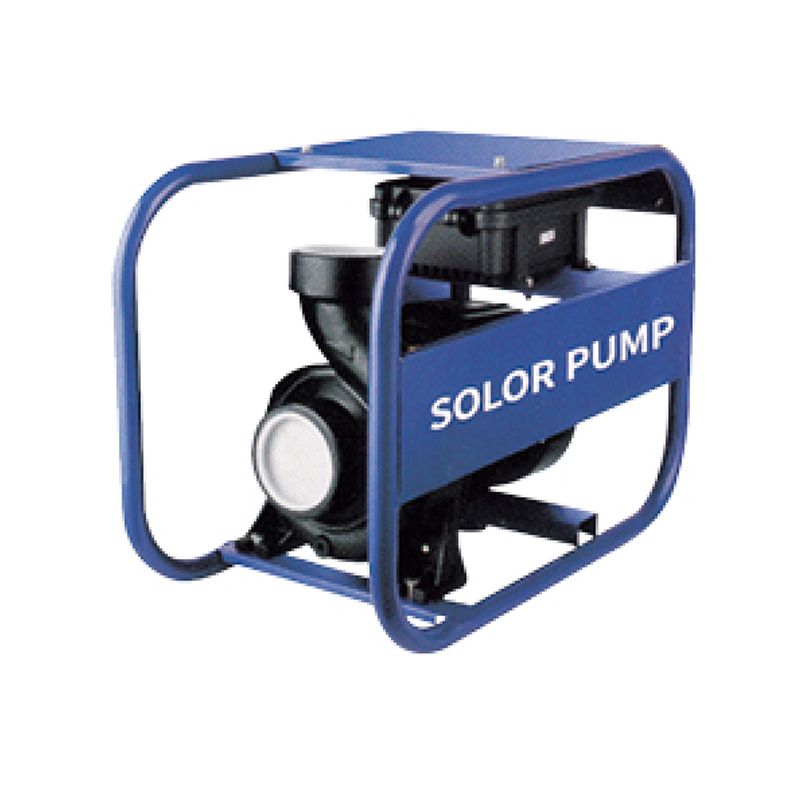

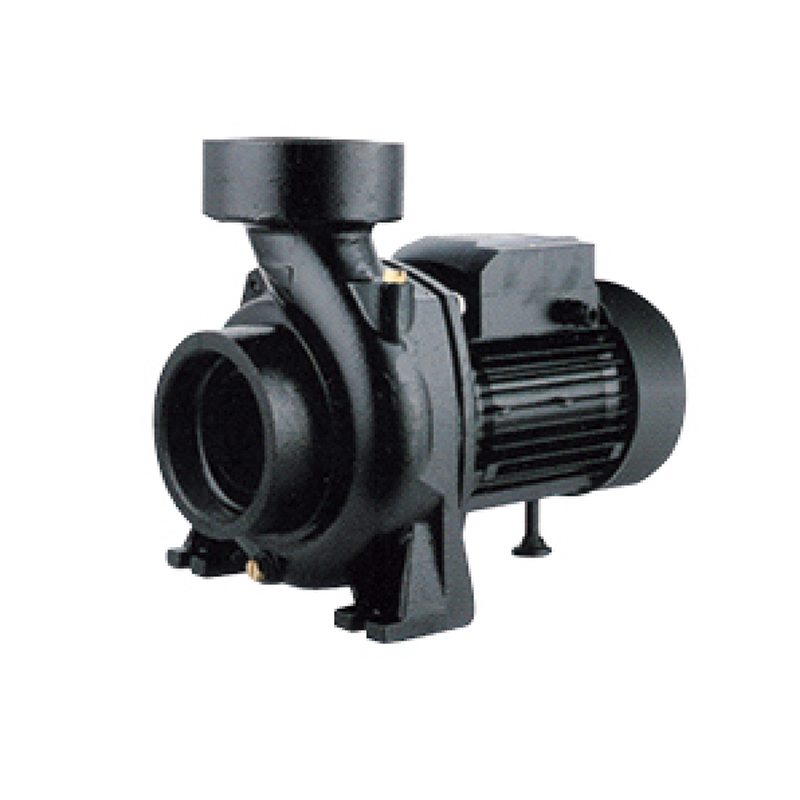

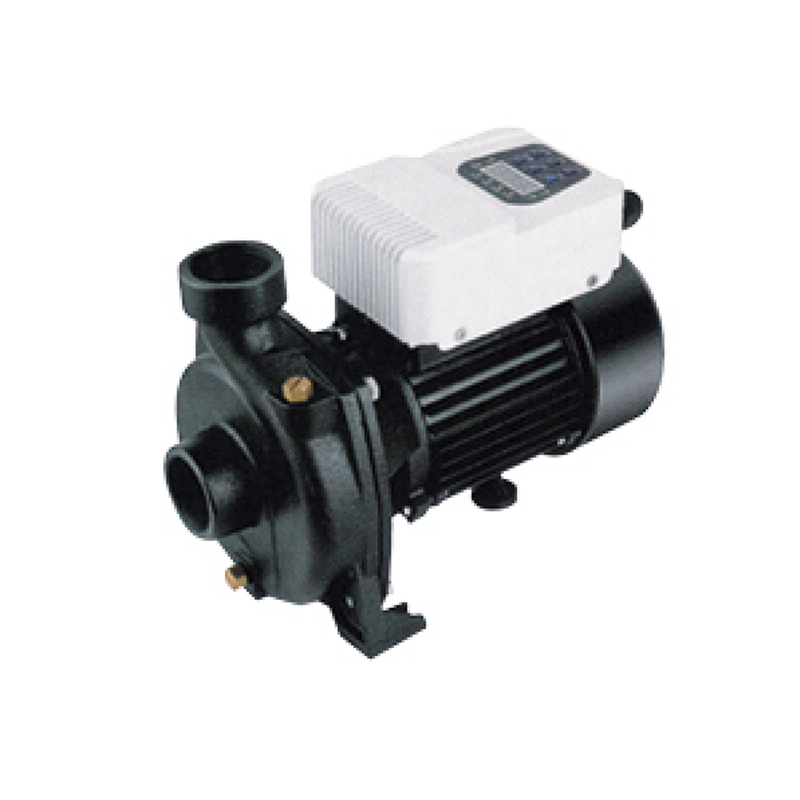

SCPM DC Peripheral Solar Surface Water Well Pumps
Product Description
At a time when sustainable solutions are critical, the SCPM DC Peripheral Solar Surface Water Well Pump stands as a beacon of innovation in water extraction technology. Designed to harness the power of the sun, this advanced pump is ideal for those seeking an efficient and environmentally friendly way to extract water. By combining a DC motor with a solar panel, the SCPM pump provides a reliable and renewable source of water for a variety of applications, from agricultural irrigation to domestic water supply.
One of the outstanding features of the SCPM DC Peripheral Solar Surface Well Pump is its high efficiency. Under optimal sunlight conditions, the pump can provide a steady flow of water, ensuring that users have access to the necessary resources they need. Whether used to irrigate crops or supply water to homes, the SCPM pump is a reliable solution. Its ability to harness solar energy not only reduces operating costs, but also promotes sustainable practices in water management.
Adaptability is another key benefit of the SCPM DC Peripheral Solar Surface Well Pump. Its design allows for use in a variety of settings, including remote and rural areas with limited access to electricity. This flexibility ensures that individuals and communities have access to a reliable source of water wherever they are. The SCPM pump is particularly beneficial in areas facing water scarcity, as it provides a sustainable solution that can be deployed in a variety of settings, improving water availability for all.
The SCPM DC peripheral solar-powered surface well pump is designed to be extremely user-friendly in terms of installation and maintenance. The pump’s simple installation process allows for easy user set-up, while its low maintenance requirements ensure that routine inspections and servicing can be completed with ease. Certain models even feature an intelligent control system that automatically adjusts the pump’s operation based on water level and flow rate, further improving efficiency and reliability. This combination of ease of use and advanced technology makes the SCPM pump a top choice for those seeking a practical and effective water pumping solution.
The SCPM DC peripheral solar-powered surface well pump represents a significant advancement in sustainable water extraction technology. With its high efficiency, environmentally friendly, adaptable, and user-friendly design, the pump is well suited for a wide range of applications. As the world continues to prioritize renewable energy and sustainable practices, the SCPM pump stands out as a reliable, innovative solution for meeting water needs while protecting the environment. Adopting this technology will not only solve immediate water challenges, but also create a more sustainable future for generations to come.

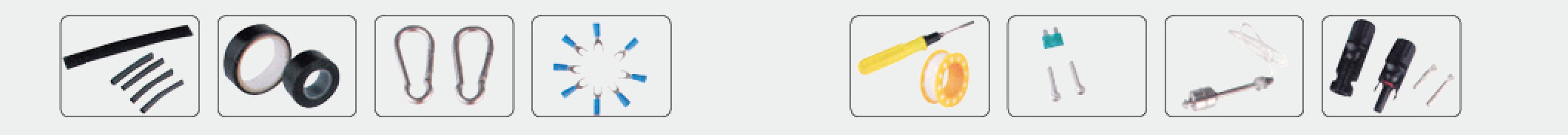

Free Spare Parts
Material Of Parts
Bearing | NSK | Motor: | Controller shell: |
Screw: | Stainless Steel | Brushless DC motor | Die-cast Aluminum (Ip67) |

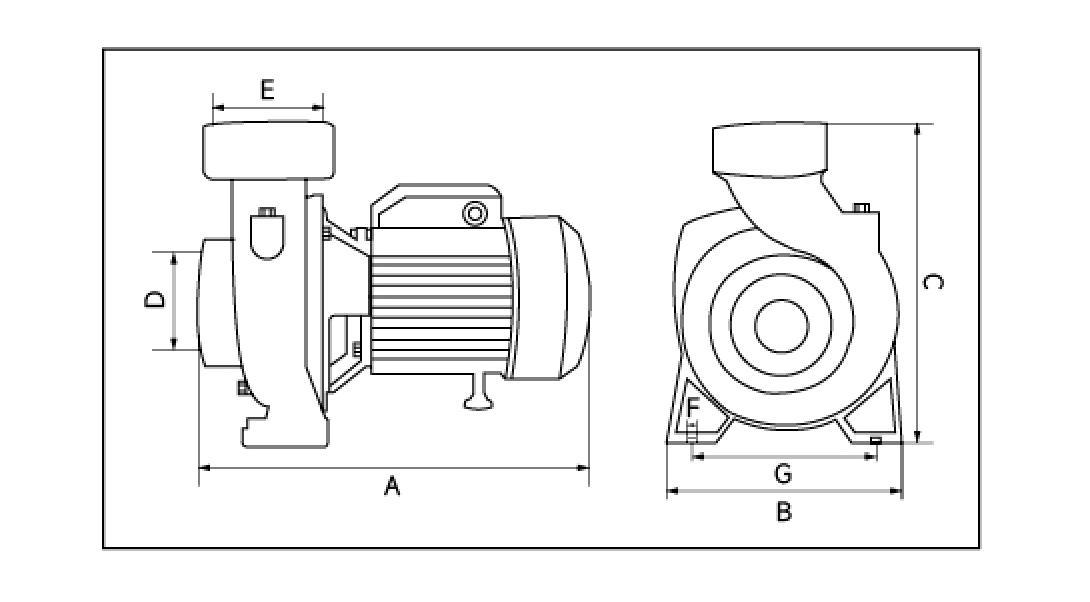

Pump Size Chart
Model | A | B | C | D | E | F | G |
SCPM6.6/35-D48/750P | 305 | 210 | 225 | 1 | 1 | 10 | 120 |
SCPM4.8/22-D48/370 | 265 | 165 | 215 | 1 | 1 | 11 | 127 |
SCPM6.6/35-D48/750 | 305 | 190 | 235 | 1 | 1 | 9 | 160 |
SCPM16/18-D48/750 | 310 | 185 | 235 | 1.5 | 1.5 | 9 | 155 |
SCPM27/15-D72/1100 | 315 | 185 | 235 | 2 | 2 | 9 | 155 |
SCPM55-17-D110-1500 | 395 | 245 | 310 | 3 | 3 | 13 | 190 |
Technical Data
Model | Pump | Solar Panels | Max Flow (m/h) | Max Head (m) | Inlet/Outlet Dia (inch) | ||
Voltage(V) | Power(W) | VOC Range(V) | Power(W) | ||||
SCPM6.6/35-D48/750P | 48 | 750 | 50-100 | ≥1000 | 6.6 | 35 | 1.25x1 |
SCPM4.8/22-D48/370 | 48 | 370 | 50-100 | ≥500 | 4.8 | 22 | 1x1 |
SCPM6.6/35-D48/750 | 48 | 750 | 50-100 | ≥1000 | 6.6 | 35 | 1x1 |
SCPM16/18-D48/750 | 48 | 750 | 50-100 | ≥1000 | 16 | 18 | 1.5x1.5 |
SCPM27/15-D72/1100 | 72 | 1100 | 76-150 | ≥1500 | 27 | 15 | 2x2 |
SCPM55-17-D110/1500 | 110 | 1500 | 100-200 | ≥2000 | 55 | 17 | 3x3 |
SCPM70-16-220/300-2200 | 280 | 2200 | 360-450 | ≥2900 | 70 | 16 | 4x4 |
