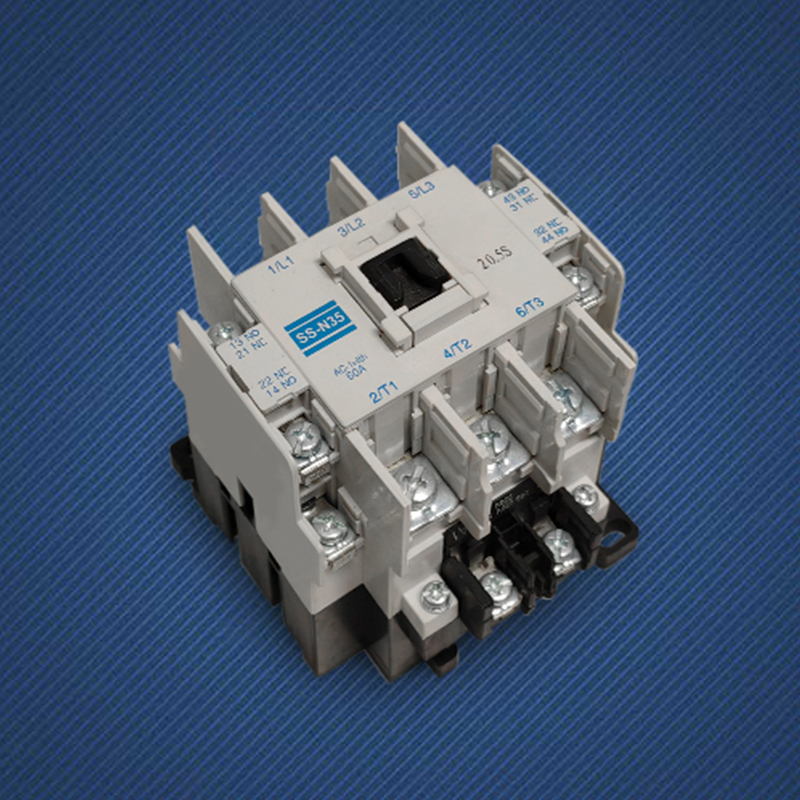

Understanding the AC Magnetic Contactor

In industrial settings, manually controlling high-power AC equipment is unsafe and inefficient. The Magnetic Contactor Ac solves this challenge. It is an electrically operated switch that uses an electromagnet to safely connect or disconnect a power circuit. Essentially, it acts as a heavy-duty remote control, allowing you to operate motors, heaters, and other large loads from a distance using a low-voltage signal. This brings automation, safety, and dependable switching to your operations.

How an AC Magnetic Contactor Works

The Magnetic Contactor Ac operates on a straightforward electromagnetic principle. Applying a low control voltage to its coil creates a magnetic field. This pulls in a movable armature, closing the main power contacts and allowing current to flow to a load like a motor. Removing the control voltage collapses the field; a spring then opens the contacts, safely interrupting the circuit. A key design feature is its built-in arc suppression system, which extinguishes the arc created when contacts open under load. This ensures both safe operation and a long service life for the device.

Key Advantages of Using an AC Magnetic Contactor

Improves Safety and Enables Remote Control

By separating the operator from the high-voltage circuit, it significantly reduces the risk of electric shock. Its operation can be automated using PLCs, sensors, or timers, allowing for advanced, hands-free control of industrial equipment.

Offers High Durability and Long Lifespan

Built for millions of switching cycles, its contacts are constructed from durable materials such as silver alloy to withstand arcing and wear. This ruggedness makes the Magnetic Contactor Ac highly reliable in applications with frequent starts and stops.

Provides Motor and Circuit Protection

Although primarily a switch, it is typically paired with protective devices like Thermal Overload Relays. These relays detect overcurrent or overheating and trigger the contactor to disconnect power, helping to prevent motor failure and reduce operational downtime.

Common Applications and Use Cases

Ac Magnetic Contactors are ubiquitous in industries that rely on electric motors and heating elements.

◆Motor Control: Starting, stopping, and reversing three-phase induction motors in conveyors, pumps, compressors, and machine tools.

◆Industrial Heating: Controlling power to resistive heating elements in ovens, furnaces, and industrial heaters.

◆HVAC Systems: Managing compressors and fan motors in large commercial air conditioning and refrigeration units.

◆Lighting Control: Switching banks of high-intensity discharge (HID) or fluorescent lighting in warehouses and stadiums.

◆Automated Machinery: Serving as the primary power switch in automated production lines and packaging equipment.

Selecting the Right AC Magnetic Contactor

Choosing the correct model involves matching it to your specific load and control requirements. The key ratings are the operational voltage and the contactor's current rating, which must exceed the full-load amperage of your motor or heater. The coil voltage must match your available control signal voltage . Also, consider the number of auxiliary contacts needed for control circuit feedback and the mechanical durability required for your application's switching frequency.

The Magnetic Contactor Ac is a fundamental component in industrial and commercial electrical control. It is the workhorse that reliably connects and disconnects power, enabling automation while protecting both equipment and personnel. For engineers, maintenance technicians, and system integrators, selecting and applying the right AC magnetic contactor is a critical step in building safe, efficient, and dependable electrical systems.
