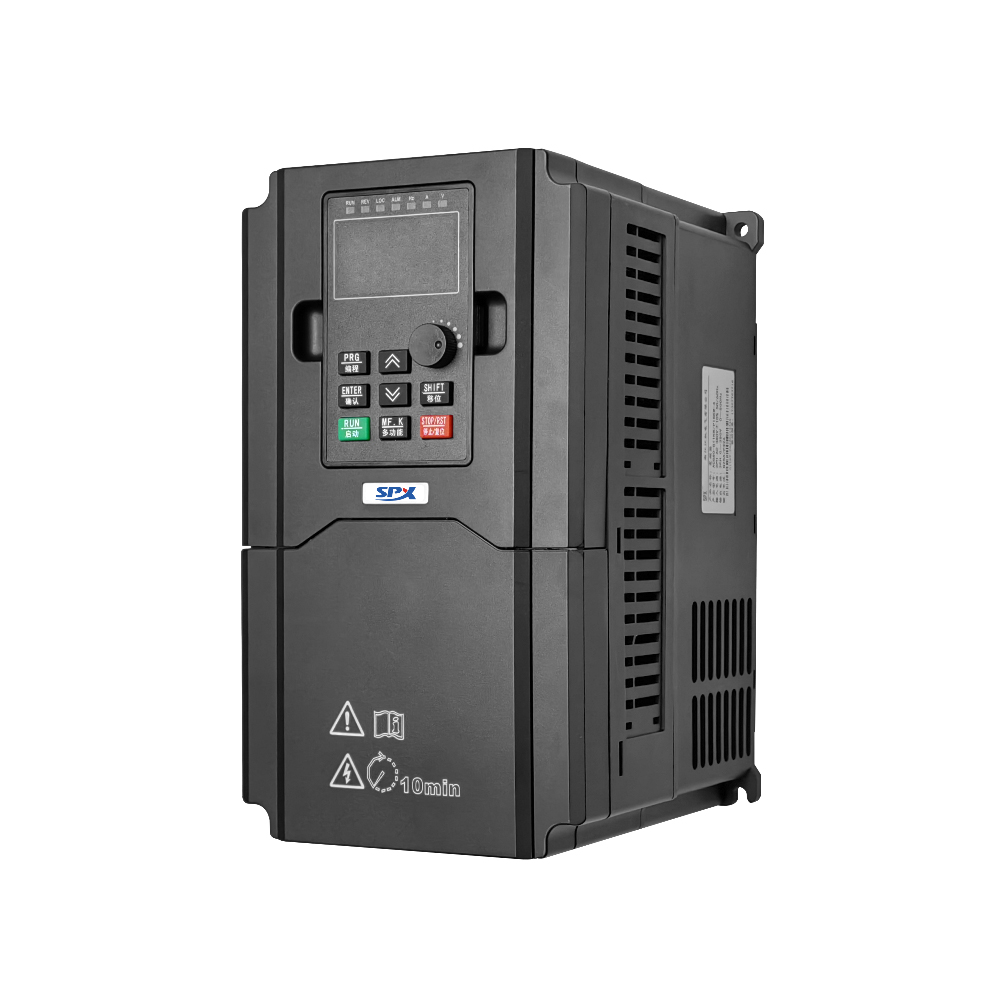

G11KW-15KW High reliability inverter for multiple scenarios
Product Description
Frequency converters are suitable for a variety of occasions and industries, mainly including the following aspects:
1.Industrial Automation: In production lines, mechanical equipment and automation systems, frequency converters are used to control the speed and torque of motors to improve production efficiency and product quality.
2.Pumps and fans: In water treatment, water supply, drainage and ventilation systems, frequency converters can adjust the operating speed of pumps and fans according to actual needs, thereby saving energy and improving system efficiency.
3.HVAC (Heating, Ventilation and Air Conditioning) System: In air conditioning and ventilation systems, inverters are used to adjust the speed of fans and compressors to achieve better temperature control and energy saving.
4.Elevators and escalators: Inverters are used in the control of elevators and escalators, providing smooth starting and stopping, improving passenger comfort and safety.
5.Paper and textile industries: In these industries, frequency converters are used to control the speed of various mechanical equipment to meet the requirements of the production process.
6.Food and Beverage Industry: In food processing and packaging equipment, frequency converters can achieve precise speed control to ensure the stability and consistency of the production process.
7.Mining and Metallurgy: In mining and metallurgical equipment, frequency converters are used to control the operation of conveyor belts, crushers and other heavy equipment to improve production efficiency and safety.
8.Power tools and home appliances: Inverters are also used in some power tools and home appliances to achieve better performance and energy efficiency.
Frequency converters are widely used in various occasions that require speed regulation and precise control, which can improve system efficiency, save energy and extend the service life of equipment.
G11KW Technical Data
|
Frequency converter model |
Power supply capacity(KVA) |
input current A |
output A |
Adaptation motor |
|
|
KW |
HP |
||||
|
3 Phase 380V(-10%~+15)，50/60Hz |
|||||
|
SP9000-4T0110G |
17 |
26 |
25 |
11 |
15 |
|
SP9000-4T0150G |
21 |
35 |
32 |
15 |
20 |
SPX inverter function parameters
●Control mode: open-loop vector control (SVC); closed-loop vector control (FVC); and V/ F control.
●Start-up torque:0.25Hz/ 150% (SVC); 0Hz / 180% (FVC).
●V / F curve: four ways: straight line; multi-point type; complete V/ F separation;incomplete V/ F
separation.
●Increase and deceleration curve: straight-line or S-curve increase and deceleration mode;Four accelerationand deceleration times, acceleration and deceleration time range 0.0~6500.0s.
●DC brake: DC brake starting frequency:0.00Hz~ maximum frequency;Brake time:0.0s~36.0s;Brake actioncurrent value: 0.0%~100.0%.
●Point movement control: point movement frequency range:0.00Hz~50.00Hz;
●Tap action, acceleration and deceleration time is 0.0s~6500.0s.
●Built-in PID: it can easily realize the process control closed-loop control system.
●Overvoltage and overvoltage loss speed control: automatically limit the current voltage during operationto prevent frequent overflow pressure trip.
●Simple PLC, multi-segment speed operation: up to 16 segments running through the built-inPLC or controlterminals.
●Fast current limiting function: minimize the overcurrent fault and protect the normal operation of thefrequency converter.
●Automatic Voltage Adjustment (AVR): When the power grid voltage changes, keep the output voltageconstant
●Automatic energy saving operation: according to the load situation, automatically optimize the V/ F curveto realize energy saving operation
