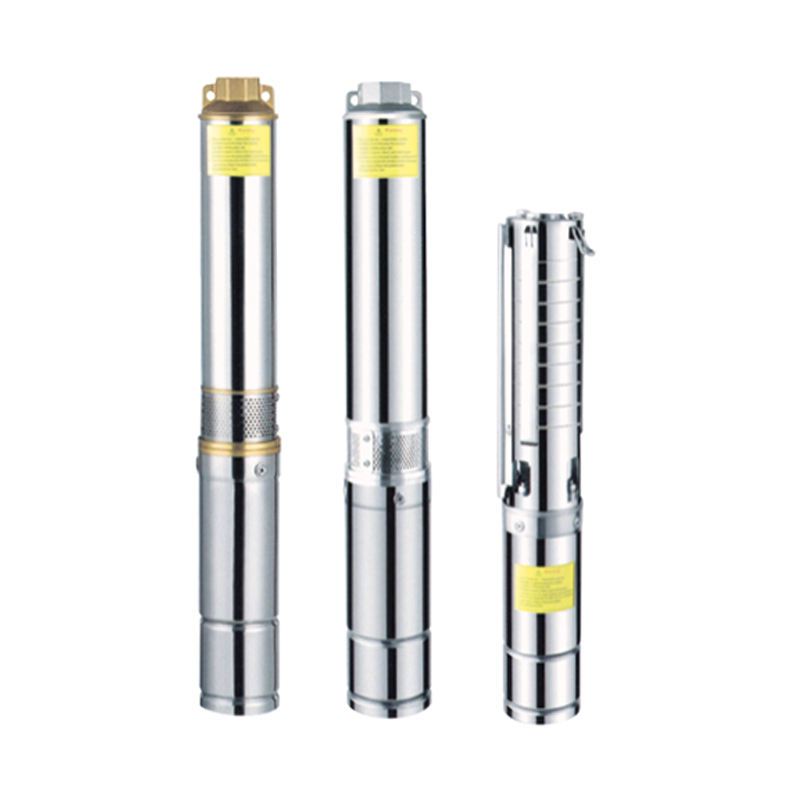

3/4 INCH AC-DC SUBMERSIBLE SOLAR PUMPS

The 3/4" AC-DC Submersible Solar Pump demonstrates the potential of renewable energy to solve water management challenges. Its wide range of applications, from agricultural irrigation to emergency water supply, highlights its versatility and effectiveness. By harnessing the power of the sun, the pump not only provides a sustainable solution to water needs, it also contributes to a greener future. As we continue to seek innovative ways to harness renewable resources, the 3/4" AC-DC Submersible Solar Pump stands out as a beacon of hope for sustainable water management.

    Product Description

    In an age where sustainable solutions are critical, the 3/4" AC-DC Submersible Solar Pump is a versatile, eco-friendly option for a variety of water management needs. This innovative pump harnesses the power of the sun, making it ideal for locations where traditional electricity supplies are unreliable or non-existent.

    Agricultural irrigation

    One of the main uses of the 3/4" AC-DC submersible solar pump is agricultural irrigation. Farmers in remote areas often face challenges in accessing reliable sources of water for their crops. This solar pump effectively uses the sun's energy to pump water from groundwater sources, ensuring that farmland is adequately irrigated. By using this pump, farmers can significantly reduce their reliance on fossil fuels and lower operating costs while promoting sustainable agricultural practices.

    Pumping water from the well

    In rural or mountainous areas, access to clean water can be a significant challenge. The 3/4" AC-DC Submersible Solar Pump is designed to draw groundwater from wells, providing a reliable source of water for domestic and agricultural use. Its submersible design allows it to operate efficiently underwater, ensuring water is pumped directly to the surface without the need for extensive infrastructure. This feature is particularly beneficial in areas where traditional pumping systems may be impractical or cost-prohibitive to implement.

    Water features and fountains

    The beauty of parks, gardens, and private yards can be enhanced by adding water features and fountains. 3/4-inch AC-DC submersible solar pumps can be used to circulate and oxygenate the water in these features, creating a tranquil and inviting atmosphere. By harnessing the power of the sun, these pumps not only help beautify outdoor spaces, but they also promote environmental sustainability by reducing energy consumption.

    Aquaculture

    In the world of aquaculture, maintaining optimal water quality is essential for the health and growth of aquatic life. 3/4" AC-DC submersible solar pumps play a vital role in circulating water, supplying oxygen, and ensuring the aquatic environment is conducive to fish and plant life. By integrating this solar pump into an aquaculture system, operators can increase productivity while minimizing their carbon footprint.

    Irrigation System

    Greenhouses and botanical gardens require precise irrigation systems to support plant growth. 3/4" AC-DC submersible solar pumps can be seamlessly integrated into automatic irrigation systems to provide a continuous supply of water based on the needs of various plants. This not only optimizes water usage but also promotes healthy plant growth, making it a valuable tool for horticulturists and gardeners.

    Emergency Water Supply

    Natural disasters and power outages can disrupt the supply of clean water, posing significant risks to communities. In these situations, the 3/4" AC-DC submersible solar pump is a reliable emergency water supply solution. Its ability to operate independently of the electrical grid ensures that individuals and families have access to water even in the most challenging situations.

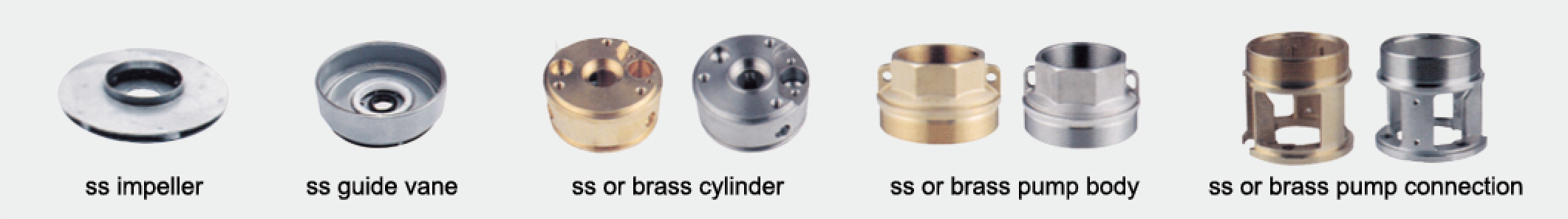

    Material Of Parts

    Pump head: Copper/SS304 Cable: 3m
    Impeller: SS304 Motor: Permanent magnetic synchronous
    Bearing: NSK brand

    Advantage Of Solar Water Pump

    ●High efficiency because of PMSM
    ●MPPT function
    ●Intelligent water shortage protection
    ●Longer life than normal ac water pump
    ●Over-load protechion Under-load protection
    ●Lock-rotor protection Thermal proteciton

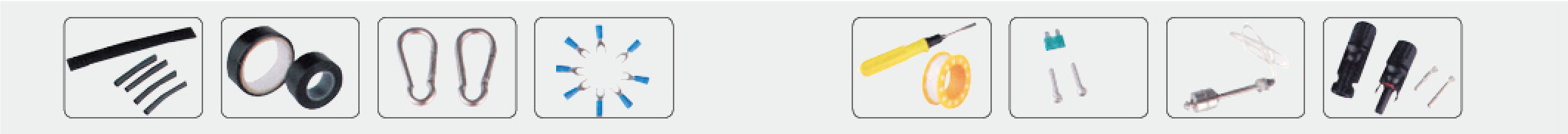

    Free Spare Parts


    Pumo Size Chart


    Technical Data

    Model Rated/Max Flow(m³/h) Rated/Max Head (m) Pump Pump Dia (inch) Outlett Dia (inch) Solar Panels
    Voltage(V) Power(W) VOC Range(V) Power(W)
    35PXA2-50-0.75  2/4 50/85 AC220/DC150 0.75 3 1 100-400 1.0
    4SPXA2-55-0.75 2/3.8 55/90 AC220/DC150 0.75 4 1.25 100-400 1.0
    4SPXA3-40-0.75 3/5.5 40/70 AC220/DC150 0.75 4 1.25 100-400 1.0
    4SPXA4-30-0.75  4/7 30/50 AC220/DC150 0.75 4 1.25 100-400 1.0
    4SPXA7-23-0.75   7/10 23/34 AC220/DC150 0.75 4 1.5 100-400 1.0
    3SPXA2-70-1.1  2/4 70/120 AC220/DC150 1.1 3 1 100-400 1.6
    4SPXA2-80-11 2/3.8 80/125 AC220/DC150 1.1 4 1.25 100-400 1.6
    45PXA3-65-1.1 3/5.5 65/110 AC220/DC150 1.1 4 1.25 100-400 1.6
    45PXA4-55-1.1  4/7 55/95 AC220/DC150 1.1 4 1.25 100-400 1.6
    45PXA7-32-1.1   7/10 32/45 AC220/DC150 1.1 4 1.5 100-400 1.6
    4SPXA10-20-1.1 10/18 20/33 AC220/DC150 1.1 4 2 100-400 1.6
    3SPXA2-110-1.5  2/4 110/150 AC220/DC300 1.5 3 1 100-400 2.1
    4SPXA2-115-1.5 2/3.8 115/160 AC220/DC300 1.5 4 1.25 100-400 2.1
    4SPXA3-90-1.5 3/5.5 90/145 AC220/DC300 1.5 4 1.25 100-400 2.1
    4SPXA4-70-1.5  4/7 70/100 AC220/DC300 1.5 4 1.25 100-400 2.1
    4SPXA7-40-1.5   7/10 40/60 AC220/DC300 1.5 4 1.5 100-400 2.1
    4SPXA10-28-1.5 10/18 28/40 AC220/DC300 1.5 4 2 100-400 2.1
    4SPXA2-180-2.2 2/3.8 180/220 AC220/DC300 2.2 4 1.25 150-420 3.1
    4SPXA3-150-2.2 3/5.5 150/200 AC220/DC300 2.2 4 1.25 150-420 3.1
    4SPXA4-100-2.2  4/7 100/140 AC220/DC300 2.2 4 1.25 150-420 3.1
    4SPXA7-60-2.2   7/10 60/80 AC220/DC300 2.2 4 1.5 150-420 3.1
    4SPXA10-40-2.2 10/18 40/60 AC220/DC300 2.2 4 2 150-420 3.1
    45PXA3-180-3 3/5.5 180/240 AC380/DC540 3 4 1.25 660-800 4.2
    4SPXA4-140-3  4/7 140/160 AC380/DC540 3 4 1.25 660-800 4.2
    4SPXA7-80-3   7/10 80/120 AC380/DC540 3 4 1.5 660-800 4.2
    4SPXA10-55-3 10/18 55/80 AC380/DC540 3 4 2 660-800 4.2
    45PXM4-180-4  4/7 180/220 AC380/DC540 4 4 1.25 660-800 5.6
    4SPXA7-115-4   7/10 115/150 AC380/DC540 4 4 1.5 660-800 5.6
    4SPXA10-75-4 10/18 75/105 AC380/DC540 4 4 2 660-800 5.6
    4SPXA7-150-5.5   7/10 150/220 AC380/DC540 5.5 4 1.5 660-800 8.25
    4SPXA10-100-5.5 10/18 100/130 AC380/DC540 5.5 4 2 660-800 8.25
    4SPXA7-200-7.5   7/10 200/250 AC380/DC540 7.5 4 1.5 660-800 10.5
    4SPXA10-145-7.5 10/18 145/180 AC380/DC540 7.5 4 2 660-800 10.5
    4SPXA20-80-7.5 20/30 80/110 AC380/DC540 7.5 4 2 660-800 10.5
